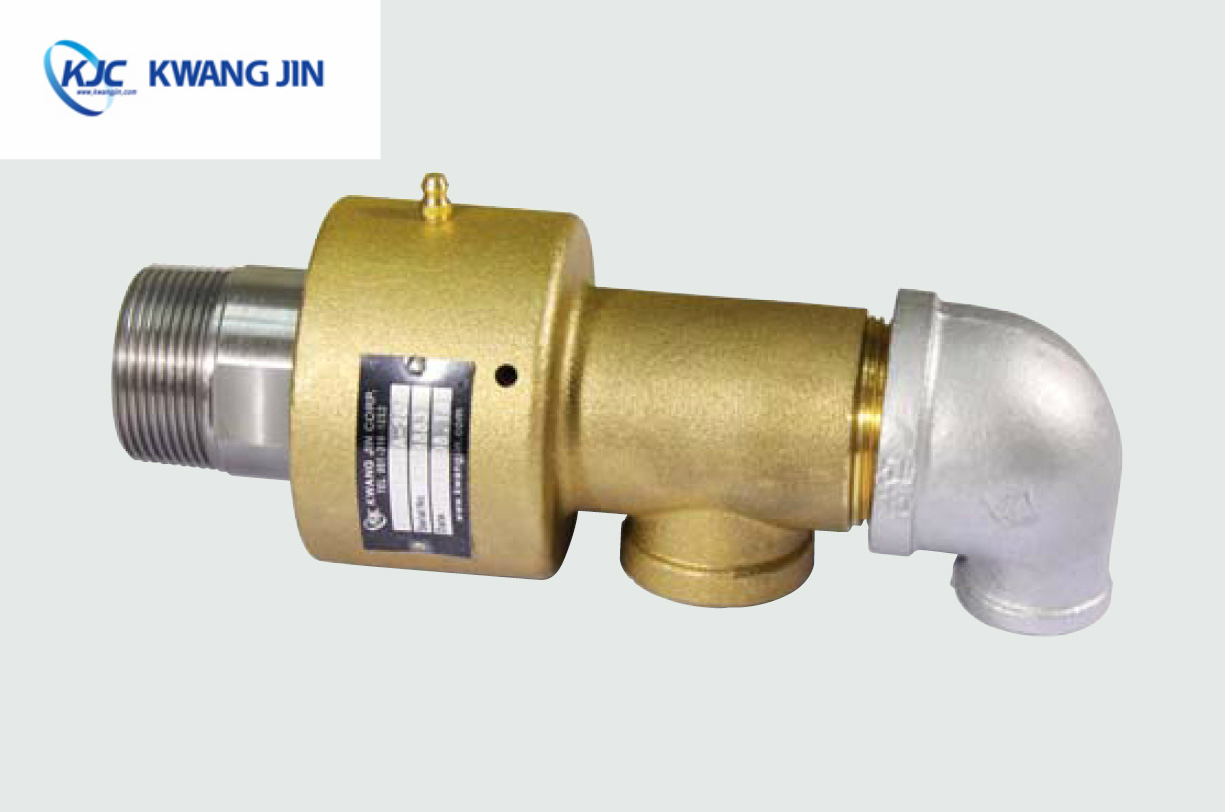

Kwang Jin là nhà sản xuất khớp nối xoay đến từ Hàn Quốc, ứng dụng nhiều trong ngành Thép, dệt may, thực phẩm, giấy, lốp xe,...

Pitesco xin giới thiệu Listcode khớp nối xoay được hãng Kwang Jin ủy quyền phân phối tại Việt Nam:

KR1000

-Low Friction
-High speed operation enabled at
 high temperature & pressure media
-Bellows in side,enables switching
 between cooling & heating  operation
Size Range 15A~80A (1/2"~3")
Max. Pressure 15kg/㎠ (210PSI)
Max. Temperature 180℃ (360℉)
Max. Rotation Speed
   15A~40A
   (1/2"~1-1/2")		 300RPM
   50A~80A(2"~3") 150RPM
Media Steam , Hot Oil , Water
PDF Download Case of Installation View

KR2200

- Balanced Seal Type
  - Enables high spped rotation at high pressure
  - Low Friction
- Stainless steel shaft and springs
- Silicon-Carbide sealing for KRS model
  - Extended running hours than KR model
  - Protection against media contamination by rust,
    scale,chips & other harmful abrasives
Size Range 6A~80A(1/8"~3")
Max. Pressure 10kg/㎠ (150PSI)
Max. Temperature 100℃ (210℉)
Max. Rotation Speed
   6A~25A(1/8"~1") 1,000RPM
   32A~40A(1-1/4"~1-1/2") 700RPM
   50A~80A(2"~3") 500RPM
Media Water , Air , Gas , Oil
PDF Download Case of Installation View

KR3000

- Spherical Sealing
- Two widely-spaced carbon bearing
- Self-supported & alignment rotating union
- Easily field repairable
- For Steam media
- Non-Lubrication type
Size Range 15A~80A(1/2"~3")
Max. Pressure 15kg/㎠ (210PSI)
Max. Temperature 220℃ (420℉)
Max. Rotation Speed
   15A~25A(1/2"~1") 300RPM
   32A~80A(1-1/4"~3") 150RPM
Media Steam
PDF Download Case of Installation View

KR3200

- Spherical Sealing
- Two widely-spaced carbon bearing
- Self-supported & alignment rotating union
- Easily field repairable
- For Hot Oil media
- Over Max, Temp.220℃ , consult KJC
- Non-Lubrication type
Size Range 15A~80A(1/2"~3")
Max. Pressure 15kg/㎠ (210PSI)
Max. Temperature 220℃ (420℉)
Max. Rotation Speed
   15A~25A(1/2"~1") 300RPM
   32A~80A(1-1/4"~3") 150RPM
Media Hot Oil
PDF Download Case of Installation View

KR3700

- Two widely-spaced carbon bearing
- Spherical sealing
- Self-supported & alignment rotating  union
- Non-lubrication type
- High temp, steam & hot oil media
Size Range 15A~80A(1/2"~3")
Max. Pressure 15kg/㎠ (210PSI)
Max. Temperature 220℃ (420℉)
Max. Rotation Speed
   15A~25A(1/2"~1") 300RPM
   32A~80A(1-1/4"~3") 150RPM
Media Steam , Hot oil
PDF Download Case of Installation View

KR4000

- Simple structure
- Easily field repairable
- Dual spherical sealing
- Self-Alignment rotating union
- Low-friction / High speed rotation
- Non-lubrication
- Suitable for high temp. Steam & Oil
Size Range 50A~150A(2"~6")
Max. Pressure 15kg/㎠ (210PSI)
Max. Temperature 220℃ (420℉)
Max. Rotation Speed
   50A~100A(2"~4") 300RPM
   125A~150A(5"~6") 150RPM
Media Steam , Hot oil
PDF Download Case of Installation View

BR6205-15A

- Multi-level index table mounted Air/Oil
  hydraulic machine
- Special seal for long and stable service life
- Multi-port rotary joints are available on
  order demand
Size Range 15A(1/2")
Max. Pressure
   For Air 10kg/㎠ (150PSI)
   For Hydraulic Oil 140kg/㎠ (2,000PSI)
Max. Rotation Speed 250RPM
Max. Temperature 100℃ (210℉)
Media Air , Hydraulic Oil
PDF Download Case of Installation View

OR6200

- Multi-level index table mounted Air/Oil
  hydraulic machine
- Special seal for long and stable service life
- Other multi-port rotary joints are available on
  order demand
Max. Pressure
   For Air 10kg/㎠ (150PSI)
   For Hydraulic Oil 140kg/㎠ (2,000PSI)
Max. Rotation Speed 250RPM
Max. Temperature 100℃ (210℉)
Media Air , Hydraulic Oil
PDF Download Case of Installation View

KR6414-10 / KR6413-10

- For high speed spindle & gundrill
- Special mechanical seal protection against
  abrasive fluid
Max. Coolant Pressure 70kg/㎠ (1,000PSI)
Max. Rotation Speed 10,000RPM
Max. Temperature 100℃ (210℉)
Media Coolant , Hydraulic Oil
PDF Download Case of Installation View

KR6414-15 / KR6413-15

- For high speed spindle & gundrill
- Other port size and connection unions are
  available on order demand
Max. Coolant Pressure 105kg/㎠ (1,520PSI)
Max. Rotation Speed 15,000RPM
Max. Temperature 80℃ (180℉)
Media Coolant , Hydraulic Oil
PDF Download Case of Installation View

KR6505-15Ax3P

- For tire mold & press clutch
- Low friction at high speed rotation by
  mechanical seal structure
Size Range 15A~25A(1/2"~1")
Max. Air Pressure 10kg/㎠ (150PSI)
Max. Rotation Speed 1,000RPM
Max. Temperature 100℃ (210℉)
Media Air
PDF Download Case of Installation View

KR6505-10Ax2P , KR6505-15Ax2P , KR6505-20Ax2P

- For tire mold & press clutch
- Low friction at high speed rotation by
  mechanical seal structure
Size Range 10A~25A (3/8" ~ 1")
Max. Air Pressure 10kg/㎠ (150PSI)
Max. Rotation Speed 1,000RPM
Max. Temperature 100℃ (210℉)
Media Air
PDF Download Case of Installation View

OR8000

- Around-The-Shaft rotaryjoint for air or
  hydraulic oil
- Special design rotaryjoints are available
  on order demand
Max. Shaft Size 200mm (8")
Max. Air Pressure 10kg/㎠ (150PSI)
Max. Hydraulic Pressure 140kg/㎠ (2,000PSI)
Max. Rotation Speed 180RPM
Media Air , Hydraulic Oil
PDF Download Case of Installation View
