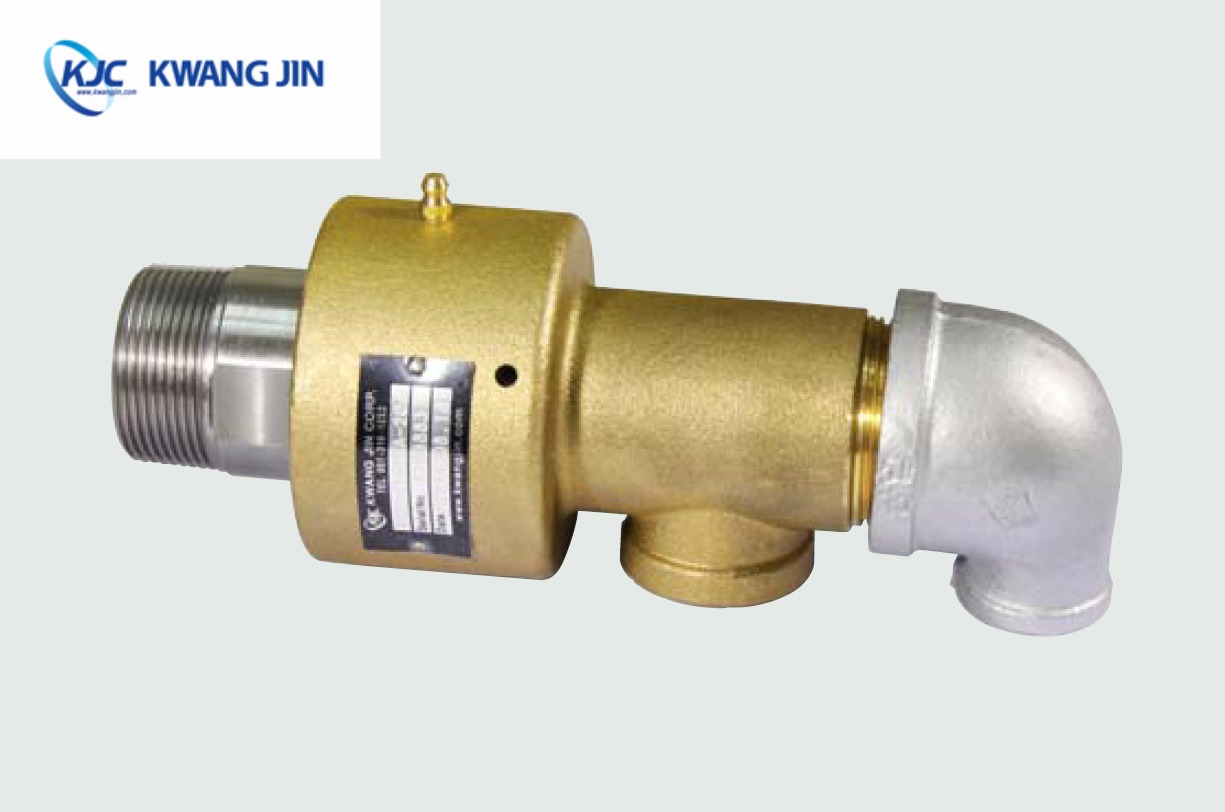

Mr NghĩaKwang Jin là nhà sản xuất khớp nối xoay đến từ Hàn Quốc, ứng dụng nhiều trong ngành Thép, dệt may, thực phẩm, giấy, lốp xe,...
Pitesco xin giới thiệu Listcode khớp nối xoay được hãng Kwang Jin ủy quyền phân phối tại Việt Nam:
KJ100
- Bellows mechanical seal type - Non-lubricating type - Switchable between heating & cooling water
| Size Range | 15A~25A(1/2"~1") |
|---|---|
| Max. Pressure | 23kg/㎠ (330PSI) |
| Max. Temperature | 220℃ (420℉) |
| Max. Rotation Speed | 10RPM |
| Media | Steam , Hot Oil , Water |
KJ200
- Spherical seal type - Auto adjustment for shaft angle - Switchable between heating & cooling water - Designed to hot press for tire mold
| Size Range | 15A~40A(1/2"~1-1/2") |
|---|---|
| Max. Pressure | 23kg/㎠ (330PSI) |
| Max. Temperature | 220℃ (420℉) |
| Max. Rotation Speed | 10RPM |
| Media | Steam , Hot Oil , Water |
KJ300
- O-Ring Seal - Double row steel balls supporting pressure compensation - Extended service life by precision processing
| Size Range | 10A~40A(3/8"~1-1/2") |
|---|---|
| Max. Pressure | 40kg/㎠ (560PSI) |
| Max. Temperature | |
| NBR Packing | 100℃ (210℉) |
| VITON Packing | 180℃ (360℉) |
| Media | Air , Oil , Water |
KJ400
- Special packing seal - Double row steel balls supporting pressure compensation - Low torque at high pressure
| Size Range | 10A~40A(3/8"~1-1/2") |
|---|---|
| Max. Pressure | 210kg/㎠ (3,000PSI) |
| Max. Temperature | |
| NBR Packing | 100℃ (210℉) |
| VITON Packing | 180℃ (360℉) |
| Media | Air ,Oil , Water , Hydraulic Oil |
KJ500
- Flange type - Row steel Balls supporting pressure compensation - Extended service life by presion processing
| Size Range | 25A~400A(1"~16") |
|---|---|
| Max. Pressure | 20kg/㎠ (280PSI) |
| Max. Temperature | |
| NBR Packing | 100℃ (210℉) |
| VITON Packing | 180℃ (360℉) |
| Media | Air , Oil ,Water |
KJ600
- Pressure balance type - Low torque at high pressure - Extended service life
| Size Range | 50A~150A(2"~6") |
|---|---|
| Max. Pressure | 210kg/㎠ (3,000PSI) |
| Max. Temperature | |
| NBR packing | 100℃ (210℉) |
| VITON packing | 180℃ (360℉) |
| Media | Air , Oil , Water , Hydraulic Oil |
KJ610
- Pressure balance type - Low torque at high pressure - Extended service life
| Size Range | 8A~50A(1/4"~2") |
|---|---|
| Max. Pressure | 140kg/㎠ (2,000PSI) |
| Max. Temperature | |
| NBR packing | 100℃ (210℉) |
| VITON packing | 180℃ (360℉) |
| Media | Air , Oil , Water , Hydraulic Oil |
KJ410
- Electrolss Nickle Plated body and Stainless Steel Shaft. - High pressure watering
| Size Range | 10A~40A(3/8"~1-1/2") |
|---|---|
| Max. Pressure | 400kg/㎠ (5600PSI) |
| Max. Temperature | 100℃ (210℉) |
| Media | Water |
OJ700
- High Pressure , Drilling Ship - Long Sweep Elbow - DNV Product Certificate
| Size Range | 50A~150A(2"~6") |
|---|---|
| Max. Pressure | 1,100kg/㎠ (15600PSI) |
| Max. Temperature | 100℃ (210℉) |
| Media | Water , Oil , Gas |
