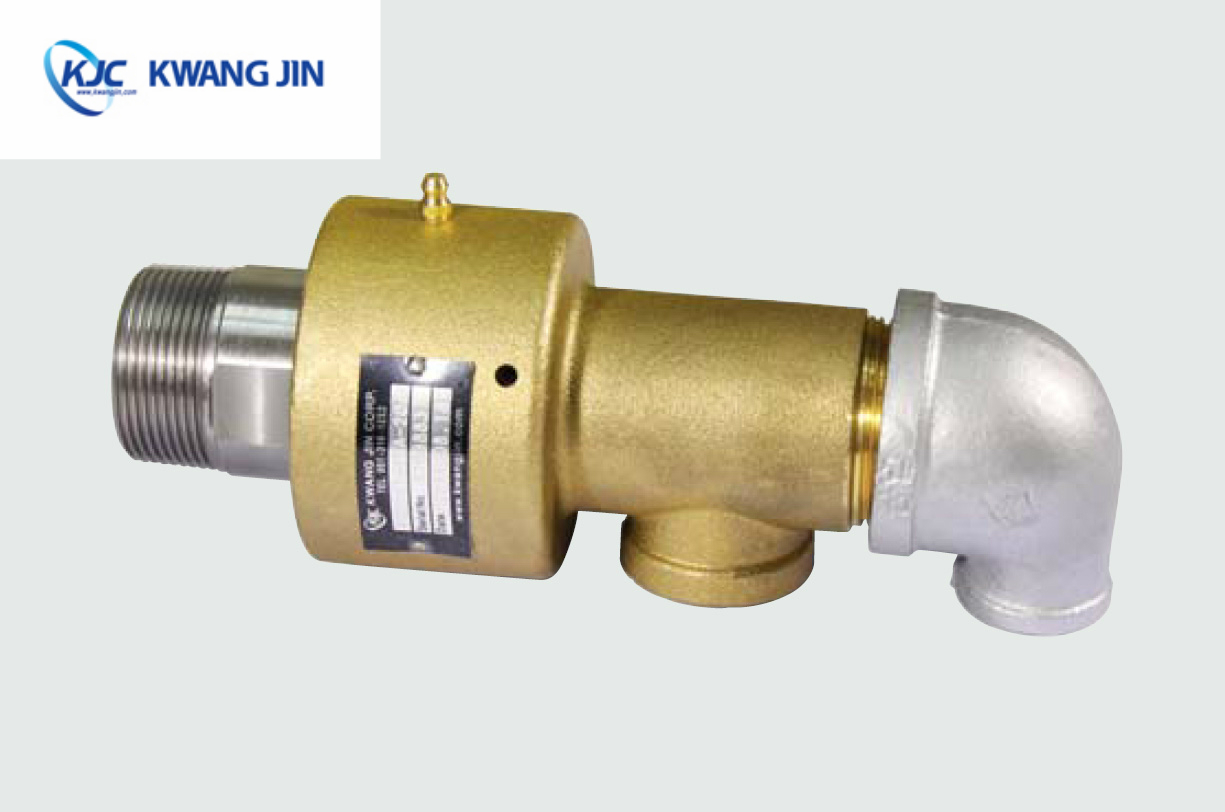

Mr NghĩaKwang Jin là nhà sản xuất khớp nối xoay đến từ Hàn Quốc, ứng dụng nhiều trong ngành Thép, dệt may, thực phẩm, giấy, lốp xe,...
Pitesco xin giới thiệu Listcode khớp nối xoay được hãng Kwang Jin ủy quyền phân phối tại Việt Nam:
KR6314-12 / KR6313-12
- For high speed machining centers at an economical price - Dry running at high speed without coolant pressure - Other port size and connection unions are available on order demand
| Max. Coolant Pressure | 70kg/㎠ (1,00PSI) |
|---|---|
| Max. Rotation Speed | 12,000RPM |
| Max. Temperature | 80℃ (180℉) |
| Media | Coolant , Hydraulic Oil |
KR6314-20 / KR6313-20
- For high speed machining centers - Dry running at high speed without coolant pressure - Other port size and connection unions are available on order demand
| Max. Coolant Pressure | 70kg/㎠ (1,000PSI) |
|---|---|
| Max. Rotation Speed | 20,000RPM |
| Max. Temperature | 80℃ (180℉) |
| Media | Coolant , Hydraulic Oil |
KR6364-30 / KR6363-30
- For high speed machining centers - Bearingless configuration and separate type - Dry running at high speed without coolant pressure - Other port size and connection unions are available on order demand
| Max. Coolant Pressure | 105kg/㎠ (1,520PSI) |
|---|---|
| Max. Rotation Speed | 30,000RPM |
| Max. Temperature | 80℃ (180℉) |
| Media | Air , Coolant , Hydraulic Oil |
KR6414-10 / KR6413-10
- For high speed spindle & gundrill - Special mechanical seal protection against abrasive fluid
| Max. Coolant Pressure | 70kg/㎠ (1,000PSI) |
|---|---|
| Max. Rotation Speed | 10,000RPM |
| Max. Temperature | 100℃ (210℉) |
| Media | Coolant , Hydraulic Oil |
KR6414-15 / KR6413-15
- For high speed spindle & gundrill - Other port size and connection unions are available on order demand
| Max. Coolant Pressure | 105kg/㎠ (1,520PSI) |
|---|---|
| Max. Rotation Speed | 15,000RPM |
| Max. Temperature | 80℃ (180℉) |
| Media | Coolant , Hydraulic Oil |
KR2200
- Balanced Seal Type
- Enables high spped rotation at high pressure
- Low Friction
- Stainless steel shaft and springs
- Silicon-Carbide sealing for KRS model
- Extended running hours than KR model
- Protection against media contamination by rust,
scale,chips & other harmful abrasives
| Size Range | 6A~80A(1/8"~3") |
|---|---|
| Max. Pressure | 10kg/㎠ (150PSI) |
| Max. Temperature | 100℃ (210℉) |
| Max. Rotation Speed | |
| 6A~25A(1/8"~1") | 1,000RPM |
| 32A~40A(1-1/4"~1-1/2") | 700RPM |
| 50A~80A(2"~3") | 500RPM |
| Media | Water , Air , Gas , Oil |
KR3000
- Spherical Sealing - Two widely-spaced carbon bearing - Self-supported & alignment rotating union - Easily field repairable - For Steam media - Non-Lubrication type
| Size Range | 15A~80A(1/2"~3") |
|---|---|
| Max. Pressure | 15kg/㎠ (210PSI) |
| Max. Temperature | 220℃ (420℉) |
| Max. Rotation Speed | |
| 15A~25A(1/2"~1") | 300RPM |
| 32A~80A(1-1/4"~3") | 150RPM |
| Media | Steam |
KR5000
- Labyrinth sealing structure - Low friction at high pressure & high soeed - Long service life - Continuos oil pressure supply - Drain port should keep open, never close
| Size Range | 10A~40A(3/8"~1-1/2") |
|---|---|
| Max. Pressure | 140kg/㎠ (2,000PSI) |
| Max. Temperature | 80℃ (180℉) |
| Max. Rotation Speed | 2,000RPM |
| Media | Hydraulic Oil |
